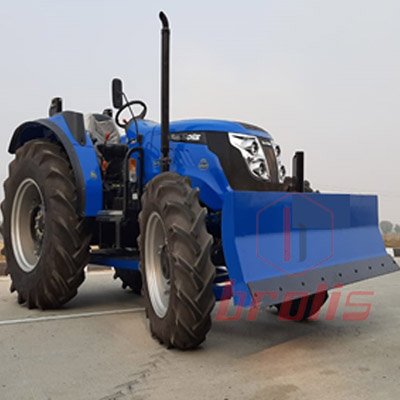

DOZER BLADE
| Font Blade Width | 2322MM |
| Blade Height | 610MM |
| Blade Sheet | 8MM |
| Ground Clearance | 380MM |
| Edge Cutting Depth | 100 MM |
| Edge Cutting | 12 MM |
| All Pin & Bush | 30MM |
| Blade Main Arm | 75*75*5 |
| Main Arm Foundation Plate | 20MM/16MM |
| Foundation Support | 75*75*5 |
| Hyd. Cylinder | Lift well or equivalent |
| Hyd. Front connection | 3/8” |
| Hyd. Rear connection | 20MM |
| Fastener | All fasteners 10.9 grade with silver coating |
| Cutting Edge Blade & Fasteners | All fasteners 10.9 grade with Black Paint coating |
| Paint | Dozer Arms Chassis Black and Front Dozing Plate Sonalika Blue and Cutting Edge Blade Black |
| Hyd. Pipe | ½” M.S proper position of all Hyd. Pipes |
| Complete Weight of Dozer Blade | 350 approx. |
| Blade Support Arm | N/A |
| Main Arm Foundation | 20MM/16MM |
| Foundation Support | 75*75*5 |
| Hyd. Cylinder | Double Acting |
| Hyd. Front Connection | 3/8” |
| Hyd. Rear Connection | 20MM |
| Weight Approx. | 540kg |
| Font Blade Width | 2322MM |
| Blade Height | 610MM |
| Blade Sheet | 8MM |
| Ground Clearance | 380MM |
| Edge Cutting Depth | 100 MM |
| Edge Cutting | 12 MM |
| All Pin & Bush | 30MM |
| Blade Main Arm | 75*75*5 |
| Main Arm Foundation Plate | 20MM/16MM |
| Foundation Support | 75*75*5 |
| Hyd. Cylinder | Lift well or equivalent |
| Hyd. Front connection | 3/8” |
| Hyd. Rear connection | 20MM |
| Fastener | All fasteners 10.9 grade with silver coating |
| Cutting Edge Blade & Fasteners | All fasteners 10.9 grade with Black Paint coating |
| Paint | Dozer Arms Chassis Black and Front Dozing Plate Sonalika Blue and Cutting Edge Blade Black |
| Hyd. Pipe | ½” M.S proper position of all Hyd. Pipes |
| Complete Weight of Dozer Blade | 350 approx. |
| Blade Support Arm | N/A |
| Main Arm Foundation | 20MM/16MM |
| Foundation Support | 75*75*5 |
| Hyd. Cylinder | Double Acting |
| Hyd. Front Connection | 3/8” |
| Hyd. Rear Connection | 20MM |
| Weight Approx. | 540kg |

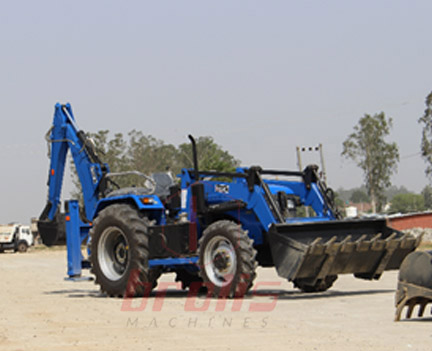

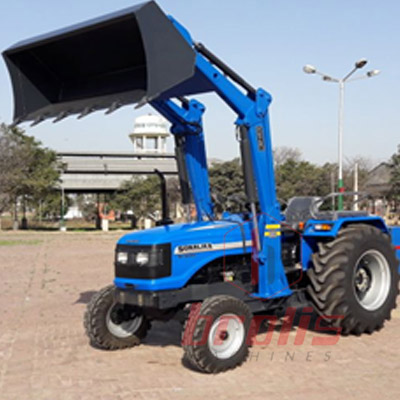

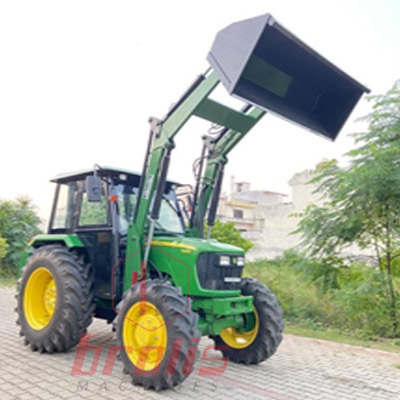

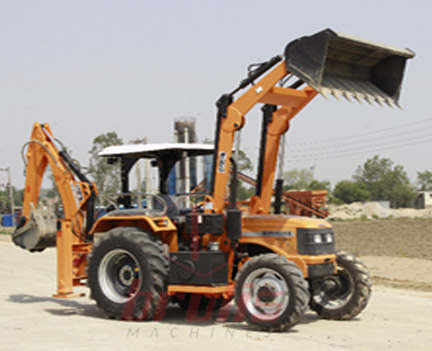

| Backhoe Specifications | Loader Specifications |
| • Maximum Digging Depth10.5 feet • Reach-ground Level To Rear Wheel Center17.25 feet • Reach-ground Level To Slew Center13.30.2feet • Reach-full Height To Slew Center4.9 feet • Maximum Working Height13.5 feet • Maximum Load Over Height10.2 feet • Bucket Rotation1700 • King Post Travel4 feet Max bucket Capacity 250 kg.(Standard) |
• Maximum Height 13.7 feet • Effective Height 12/13.5 feet • Dump Height at 45010.7/11 feet • Reach at Ground Level Bucket Tooth to Front Tyre Center7.4 feet • Reach at Dump Height to Front Tyre Center2.4 ft • Dumping Angle510 • Working Depth150 mm Max bucket Capacity 900 kg.(Standard) |
