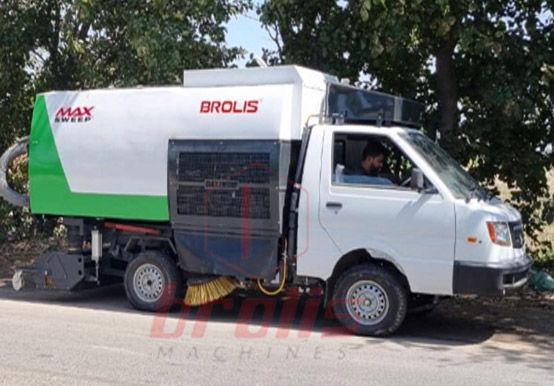

Sweeper Model: Maxsweep-100 Chassis mounted vacuum Sweeper machine.
truck mounted road sweeping machine| Model | MAXSWEEP 100 | Optional |
| Chassis | 3 Ton | TATA, AL, MAHINDRA etc. |
| Hopper Capacity | 1.2 M3 Mild Steel | S.S 202 or 304 grade |
| Dust Collection Method | Vacuum Based | Conveyour type |
| Auxilary Engine | 49 Hp. Diesel | N/A |
| Rotary Brush | 02 Dia 500mm | Front of cabin |
| Roller Brush | 01 Dia 381 Length 1550mm | N/A |
| Water Tank Capacity | 100 liters | N/A |
| Water Spray Nozzle Locations | 1500 Spray Bar attached with roller brush and Spray nozzles attched with Rotary Brushes L&H | N/A |
| Controls | Control Panel fitted in Driver Cabin | N/A |
| Safety | Blinkers and Indicators and night working lights | |
| Camera | One LCD with rear and side view | Optional |
| Cleaning Capacity | 15000 Sq. M3 |
LIGHTS FOR NIGHT WORK: -
Lights provided on side brushes, sweeping head & at rear of the machine
Reflectors and blinkers provided at rear of machine for safety at night work
WANDERING HOSE
A Hand-held light weight Stainless Steel Suction nozzle with 12 feet long flexible suction hose
150 MM diameter provided at the rear of machine for manual cleaning of hard-to-reach areas
CONTROLS
An easily accessible control panel mounted in front of operator including following controls and
Gauges.
1. Auxiliary engine Gauges
2. Auxiliary Engine Ignition Key Oil Pr. Gauges
3. Accelerator control Temp. Gauges
4. Suction fan Drive ON/OFF Amp. Gauges
5. Roller & Rotary Brush ON/OFF Hour Meter
6. Sweeping head & brush Up/Down Equipment Lights ON/OFF
7. Debris hopper tipping Emergency stop

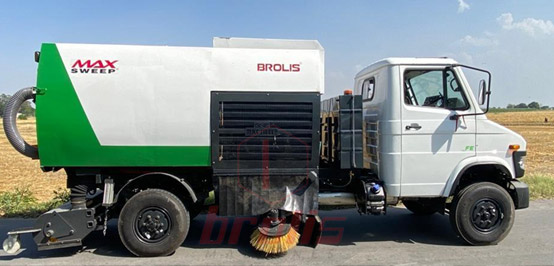

Sweeper Model: Maxsweep-200 Chassis mounted vacuum Sweeper machine.
| Model | MAXSWEEP 200 | Optional |
| Chassis | 4.5 Ton TATA 407 | TATA, AL, MAHINDRA etc. |
| Hopper Capacity | 2.5 M3 Mild Steel | S.S 202 or 304 grade |
| Dust Collection Method | Vacuum Based | Conveyour type |
| Auxilary Engine | 76 Hp. Diesel | N/A |
| Rotary Brush | 02 Dia 500mm | Front of cabin |
| Roller Brush | 01 Dia 381 Length 1550mm | N/A |
| Water Tank Capacity | 300 liters | 400 liters |
| Water Spray Nozzle Locations | 1500 Spray Bar attached with roller brush and Spray nozzles attched with Rotary Brushes L&H | N/A |
| Hand Washing Gun | Hight Pressure Hand | Optional |
| Controls | Control Panel fitted in Driver Cabin | N/A |
| Safety | Blinkers and Indicators and night working lights | |
| Camera | One LCD with rear and side view | Optional |
| Cleaning Capacity | 18000 Sq. M3 |
LIGHTS FOR NIGHT WORK: -
Lights provided on side brushes, sweeping head & at rear of the machine
Reflectors and blinkers provided at rear of machine for safety at night work
WANDERING HOSE
A Hand-held light weight Stainless Steel Suction nozzle with 12 feet long flexible suction hose
150 MM diameter provided at the rear of machine for manual cleaning of hard-to-reach areas
CONTROLS
An easily accessible control panel mounted in front of operator including following controls and
Gauges.
1. Auxiliary engine Gauges
2. Auxiliary Engine Ignition Key Oil Pr. Gauges
3. Accelerator control Temp. Gauges
4. Suction fan Drive ON/OFF Amp. Gauges
5. Roller & Rotary Brush ON/OFF Hour Meter
6. Sweeping head & brush Up/Down Equipment Lights ON/OFF
7. Debris hopper tipping Emergency stop

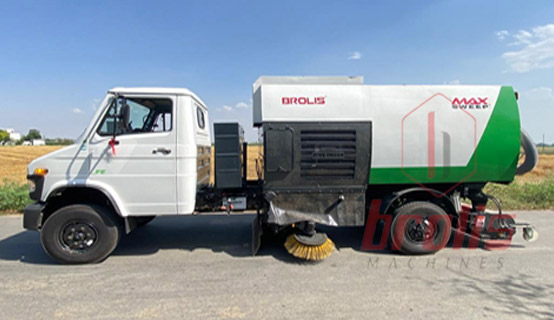

Sweeper Model: Maxsweep-300 Chassis mounted vacuum Sweeper machine.
| Model | MAXSWEEP 300 | Optional |
| Chassis | 4.5Ton TATA 407 | TATA, AL, MAHINDRA etc. |
| Hopper Capacity | 3 M3 Mild Steel | S.S 202 or 304 grade |
| Dust Collection Method | Vacuum Based | Conveyour type |
| Auxilary Engine | 76 Hp. Diesel | N/A |
| Rotary Brush | 02 Dia 500mm | Front of cabin |
| Roller Brush | 01 Dia 381 Length 1550mm | N/A |
| Water Tank Capacity | 300 liters | 400 liters |
| Water Spray Nozzle Locations | 1500 Spray Bar attached with roller brush and Spray nozzles attched with Rotary Brushes L&H | N/A |
| Hand Washing Gun | Hight Pressure Hand | Optional |
| Controls | Control Panel fitted in Driver Cabin | N/A |
| Safety | Blinkers and Indicators and night working lights | |
| Camera | One LCD with rear and side view | Optional |
| Cleaning Capacity | 18000 Sq. M3 |
LIGHTS FOR NIGHT WORK: -
Lights provided on side brushes, sweeping head & at rear of the machine
Reflectors and blinkers provided at rear of machine for safety at night work
WANDERING HOSE
A Hand-held light weight Stainless Steel Suction nozzle with 12 feet long flexible suction hose
150 MM diameter provided at the rear of machine for manual cleaning of hard-to-reach areas
CONTROLS
An easily accessible control panel mounted in front of operator including following controls and
Gauges.
1. Auxiliary engine Gauges
2. Auxiliary Engine Ignition Key Oil Pr. Gauges
3. Accelerator control Temp. Gauges
4. Suction fan Drive ON/OFF Amp. Gauges
5. Roller & Rotary Brush ON/OFF Hour Meter
6. Sweeping head & brush Up/Down Equipment Lights ON/OFF
7. Debris hopper tipping Emergency stop

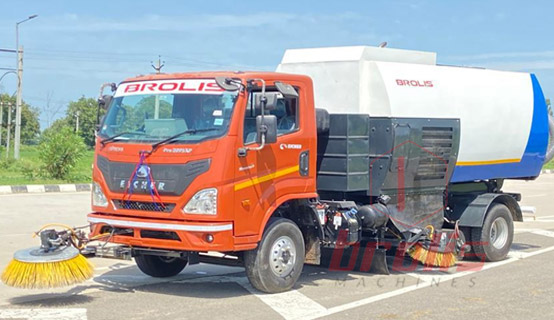

Sweeper Model: Maxsweep-400 Chassis mounted vacuum Sweeper machine.
| Model | MAXSWEEP 400 | Optional |
| Chassis | 11900 Ton EICHER | TATA, AL, MAHINDRA etc. |
| Hopper Capacity | 4 M3 Mild Steel | S.S 202 or 304 grade |
| Dust Collection Method | Vacuum Based | Conveyour type |
| Auxilary Engine | 76 Hp. Diesel | 100 HP |
| Rotary Brush | 02 Dia 500mm | Front of cabin |
| Roller Brush | 01 Dia 381 Length 1900mm | N/A |
| Water Tank Capacity | 400 liters | 600 liters |
| Water Spray Nozzle Locations | 1900 Spray Bar attached with roller brush and Spray nozzles attched with Rotary Brushes L&H | N/A |
| Hand Washing Gun | Hight Pressure Hand | Optional |
| Controls | Control Panel fitted in Driver Cabin | N/A |
| Safety | Blinkers and Indicators and night working lights | |
| Camera | One LCD with rear and side view | Optional |
| Cleaning Capacity | 24000 Sq. M3 | 30000 Sq. M3 |
LIGHTS FOR NIGHT WORK: -
Lights provided on side brushes, sweeping head & at rear of the machine
Reflectors and blinkers provided at rear of machine for safety at night work
WANDERING HOSE
A Hand-held light weight Stainless Steel Suction nozzle with 12 feet long flexible suction hose
150 MM diameter provided at the rear of machine for manual cleaning of hard-to-reach areas
CONTROLS
An easily accessible control panel mounted in front of operator including following controls and
Gauges.
1. Auxiliary engine Gauges
2. Auxiliary Engine Ignition Key Oil Pr. Gauges
3. Accelerator control Temp. Gauges
4. Suction fan Drive ON/OFF Amp. Gauges
5. Roller & Rotary Brush ON/OFF Hour Meter
6. Sweeping head & brush Up/Down Equipment Lights ON/OFF
7. Debris hopper tipping Emergency stop

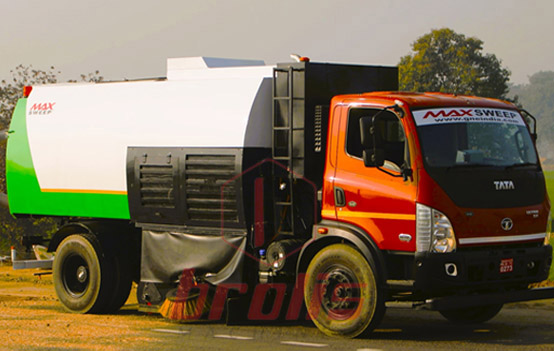

Sweeper Model: Maxsweep-500 Chassis mounted vacuum Sweeper machine.
| Model | MAXSWEEP 500 | Optional |
| Chassis | 16 Ton TATA ULTRA | TATA, AL, MAHINDRA etc. |
| Hopper Capacity | 5 M3 Mild Steel | S.S 202 or 304 grade |
| Dust Collection Method | Vacuum Based | Conveyour type |
| Auxilary Engine | 100 Hp. Diesel With Turbo Charge | 110 hp. |
| Rotary Brush | 02 Dia 500mm | Front of cabin |
| Roller Brush | 01 Dia 381 Length 1900mm | N/A |
| Water Tank Capacity | 500 liters | 1000 liters |
| Water Spray Nozzle Locations | 1900 Spray Bar attached with roller brush and Spray nozzles attched with Rotary Brushes L&H | N/A |
| Hand Washing Gun | Hight Pressure Hand | Optional |
| Controls | Control Panel fitted in Driver Cabin | N/A |
| Safety | Blinkers and Indicators and night working lights | |
| Camera | One LCD with rear and side view | Optional |
| Cleaning Capacity | 26000 Sq. M3 | 30000 Sq. M3 |
LIGHTS FOR NIGHT WORK: -
Lights provided on side brushes, sweeping head & at rear of the machine
Reflectors and blinkers provided at rear of machine for safety at night work
WANDERING HOSE
A Hand-held light weight Stainless Steel Suction nozzle with 12 feet long flexible suction hose
150 MM diameter provided at the rear of machine for manual cleaning of hard-to-reach areas
CONTROLS
An easily accessible control panel mounted in front of operator including following controls and
Gauges.
1. Auxiliary engine Gauges
2. Auxiliary Engine Ignition Key Oil Pr. Gauges
3. Accelerator control Temp. Gauges
4. Suction fan Drive ON/OFF Amp. Gauges
5. Roller & Rotary Brush ON/OFF Hour Meter
6. Sweeping head & brush Up/Down Equipment Lights ON/OFF
7. Debris hopper tipping Emergency stop

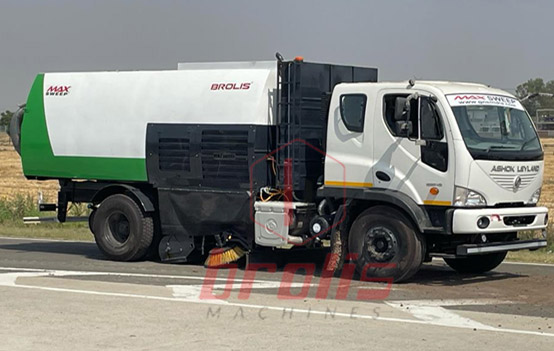

Sweeper Model: Maxsweep-600 Chassis mounted vacuum Sweeper machine.
| Model | MAXSWEEP 600 PRO | Optional |
| Chassis | 16 Ton TATA ULTRA | TATA, AL, MAHINDRA etc. |
| Hopper Capacity | 6.5 M3 Mild Steel | S.S 202 or 304 grade |
| Dust Collection Method | Vacuum Based | Conveyour type |
| Auxilary Engine | 110 Hp. Diesel With Turbo Charge | |
| Rotary Brush | 02 Dia 500mm | Front of cabin |
| Roller Brush | 01 Dia 381 Length 1900mm | N/A |
| Water Tank Capacity | 1000 liters | 1500 liters |
| Water Spray Nozzle Locations | 1900 Spray Bar attached with roller brush and Spray nozzles attched with Rotary Brushes L&H | N/A |
| Hand Washing Gun | Hight Pressure Hand | Optional |
| Controls | Control Panel fitted in Driver Cabin | N/A |
| Safety | Blinkers and Indicators and night working lights | |
| Camera | One LCD with rear and side view | Optional |
| Cleaning Capacity | 26000 Sq. M3 | 30000 Sq. M3 |
LIGHTS FOR NIGHT WORK: -
Lights provided on side brushes, sweeping head & at rear of the machine
Reflectors and blinkers provided at rear of machine for safety at night work
WANDERING HOSE
A Hand-held light weight Stainless Steel Suction nozzle with 12 feet long flexible suction hose
150 MM diameter provided at the rear of machine for manual cleaning of hard-to-reach areas
CONTROLS
An easily accessible control panel mounted in front of operator including following controls and
Gauges.
1. Auxiliary engine Gauges
2. Auxiliary Engine Ignition Key Oil Pr. Gauges
3. Accelerator control Temp. Gauges
4. Suction fan Drive ON/OFF Amp. Gauges
5. Roller & Rotary Brush ON/OFF Hour Meter
6. Sweeping head & brush Up/Down Equipment Lights ON/OFF
7. Debris hopper tipping Emergency stop
