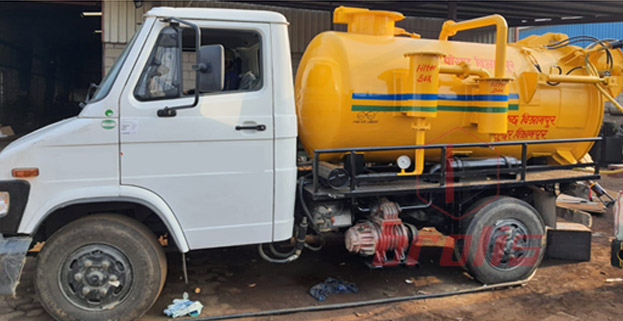

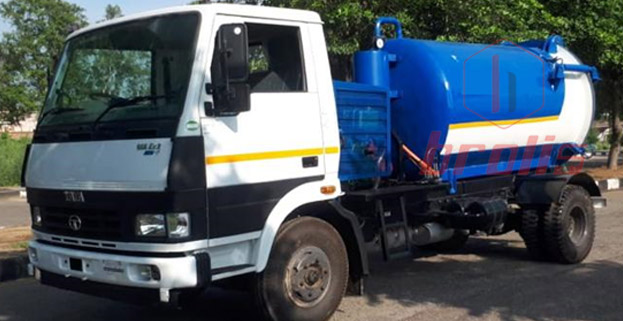

Jetting Cum Suction Machine Mounted on Truck Cab Chassis suitable for min.GVW-7tonn
| Capacity of Suction Cum Jetting Machine | 3000 ltrs Mounted on Truck Chassis |
| Material used | Mild Steel |
| Thickness | 5 mm thick for shell and 6 mm thickness for dish end. |
| Tank Compartment | 2 KL |
| Clean Water Tank | 1500 ltrs |
| Sludge Tank | 1500 ltrs |
| Vacuum Pump | Imported Italian make 5300 LPM Capacity |
| Jetting Pump | Imported Italian make 70 lpm 150 bar capacity |
| PTO Gear Pump | For Drive both pumps. |
| Jetting Hose | 30 Mtrs long, 19 MM Dia. |
| Suction Hose | 15 Mtrs PVC Hose |
| Paint | 2 coat of primer along with Enamel metal paint. |
| Hydraulics | Tank Tipping and Rear door opening operated by Hydraulic operated Levers via Reputed Hydraulic Pump. |
| TECHNICAL SPECIFICATION CAN BE CHANGED AS PER CHASSIS MODEL & CAPACITY |

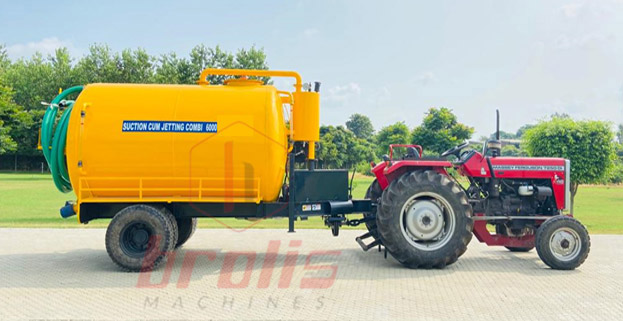

Jetting Cum Suction Machine Tractor Trailed
| Tractor | Minimum 50hp Tractor |
| General | Trailer towed suction unit is able to create vacuum as well as pressure inside the tank body for siphoning of mud, slurry etc. from sewage system. The unit is provided with sludge stirring arrangement by which pressurized air is formed into the manhole to silt the material form solid/ semi solid to liquid/semi liquid form and then sucking into the tank |
| Tank Capacity | 6000 liters |
| Water Tank Capacity | 3000 liters |
| Sludge Tank Capacity | 3000 liters |
| Material | 5mm thick M.S sheet [material conforming to IS :2062] |
| Shape | Cylindrical shell with knuckle radius dished end. |
| Construction | The Tank is fitted with anti-surge baffles to give dynamic stability to the vehicle. The tank is fitted with thick wall transparent acrylic tubing for sludge level indicator. The tank is interior is coated with epoxy paint for corrosion resistance. The tank is incorporated with clean out valve. Tank is mounted is such a way that at any point of time load will be disturbed uniformly on the chassis. |
| Tire | 9.00*16-2 |
| Driver | Power required for vacuum pump is taken from tractor’s PTO |
| JETTING MACHINE Pump Make | Imported pratissoli triplex plunger pump |
| Capacity | Flow rate 137 LPM and pressure up to 140 bar |
| Jetting Hose Make/Type | Polyhose or equivalent, special high pressure sewer jetting hose |
| Hose I. D | 19 MM |
| Length | 60 mtrs |
| Hose Reel | Hydraulically winding capable of winding 60 mtrs long high-pressure sewer jetting hose. Also, capable to accommodate 60 mtrs long jetting hose. Capable to withstand pressure up to 250bar |
| Jetting Nozzle | A set of bullet nozzles |
| Jetting Washing Hose Make / Size | Polyhose or equivalent, 12.7mm I. D X 10 mtrs long |
| Suction Filter | Inline 2” Screen Filter |
| Valves | Lever operated 3-way high pressure ball valve for jetting hose. Lever operated 3-way high pressure ball valve for washing hose. 50mm Drain Valve. |
| Accessories and Safety Device | Heavy duty glycerin field 100mm dia pressure gauge. Flexible Water level indicator. Audio/visual type water level alarm (optional). Spring loaded adjustable pressure relief valve |
| Vacuum pump Make/type | Imported make jurap Spa rotary vane pump |
| Free air flow mix | 390 CU.M/HR |
| Max vacuum | 92% |
| Max pressure | 1.5bar |
| Set pressure | 0.5 bar |
| Salient feature | Natural or forced convection air cooling in built lubricating pump inbuilt check value inbuilt change over valve asbestos free spark proof vanes positive displacement of rotary vanes |
| Tank suction hose Type | Heavy –duty spiral bound neoprene rubber suction hose. |
| Size | 75 mm diameter. X 15 mtrs. |
| Length | 15 meters |
| Tank suction valve Type/size | 80mm ball valve |
| Discharge valve Type / size | 80mm ball valve /butterfly valve |
| Rear Door | Spunned Dish end with knuckle radius manually operated openable rear door for cleaning purpose having airtight heavy-duty rubber gasket. |
| Auto shut off valve | Rubber ball float is provided inside the tank body to prevent the water entering into the vacuum pump due to overflowing of the tank |
| Secondary safety filter | Rubber ball float type secondary safety filter for pump safety which preventing water entering into the pump. |
| Strainer | Strainer is provider in pump suction line for safety |
| Pressure relief valve | Imported European make Heavy duty spring type adjustable pressure relief valve to safeguard the tank from excess pressure creating inside the tank |
| Extension pipe | Metal pipes of different length are provided with quick release coupling. These pipes are attached to reach the required depth of manhole /septic tank |
| Quick coupler | Imported European make quick coupler of sufficient diameter to connect the hose metal pipes. |
| Compound gauge | 100mm dial, pressure ranger: 0-4 kg/cm2, vacuum :0-760mm of Hg |
| Level gauge | Unbreakable sludge/water level gauge fitted throughout the height of tank. |
| Tank mounting | Tank is mounted in slope so that the sludge can be discharged by gravity or by pressurized discharge. |
| Trailer Specifications | Mode ISMC 125*65 MS Channel |
| Paint | Epoxy paint inside the tank body. Two coat of zinc based red oxide. Two coats of synthetic enamel |
| TECHNICAL SPECIFICATION CAN BE CHANGED AS PER CHASSIS MODEL & CAPACITY |
